Drip edges for roofs prevent water damage and block pests by directing water away from the roof’s edge. This helps avoid rot, leaks, and fascia damage—extending your roof’s lifespan. In this guide, we’ll cover the different types of drip edges, their benefits, and step-by-step installation tips for Mid-Missouri homeowners.
Key Takeaways
- Drip edges are metal flashings that guide water away from roof edges, preventing leaks and rot—and they’re required by most building codes.
- Three main types exist: Type C (L-Style), Type D (T-Style), and Type F—each suited to different roofing situations.
- Proper installation matters; mistakes like incorrect placement or inadequate overlap can lead to water damage and shorten your roof’s life.
What Are Drip Edges?

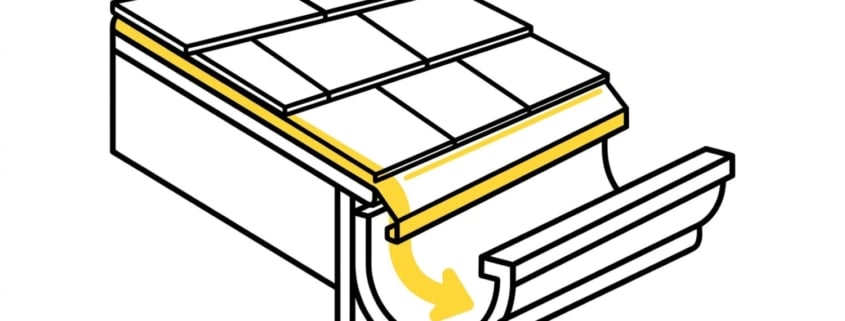

A drip edge is a strip of metal flashing installed along the roof’s edge to guide water away from the roof deck and underlying structures. Without a drip edge, water can seep under shingles, run down fascia boards, or pool behind gutters—leading to wood rot, leaks, and pest problems.
Think of drip edges as the first line of defense for your roofing system. They protect the fascia, soffit, and roof deck from moisture damage. Most building codes, including the International Residential Code (IRC), require drip edge installation on new roofs and replacements.
Beyond water management, drip edges also help keep pests out of your roof space. By sealing the gap between the roof deck and fascia, they block entry points for insects, birds, and small animals.
Why Drip Edges Matter for Missouri Roofs
Mid-Missouri weather puts roofs through heavy rain, wind-driven storms, and freeze-thaw cycles. Drip edges are especially important here because:
- Storm protection: Wind-driven rain can push water under shingles. A properly installed drip edge redirects that water into the gutters.
- Winter resilience: Drip edges help prevent ice dams by keeping meltwater flowing off the roof instead of backing up under shingles.
- Humidity control: By keeping the fascia and roof deck dry, drip edges reduce the risk of mold and rot in Missouri’s humid climate.
Types of Drip Edge Profiles
Drip edges come in three primary profiles: Type C (L-Style), Type D (T-Style), and Type F. Each has specific applications and advantages.
Type C (L-Style)
The Type C drip edge has a simple L-shaped profile. It’s effective at guiding water away from the roof edge and preventing water from seeping under the shingles. This straightforward design makes it a common choice for many residential roofing projects.
Type D (T-Style)
The Type D drip edge is shaped like a T, with an extra flange that extends beneath the roofing material. This design directs rainwater further away from the fascia, making it a strong choice for residential roofs in areas with heavy rainfall. The lower flange also helps prevent wind-driven rain from blowing back onto the fascia.
Type F
Type F drip edges have a longer leading edge and are typically used on finished roofs. The extended edge provides extra protection by directing water further from the fascia and roof edge. Aluminum is a popular material choice for Type F because it can be painted to match the home’s exterior.
Materials Used in Drip Edges
Aluminum
Aluminum is lightweight, corrosion-resistant, and easy to work with. It’s a popular choice for drip edges because it won’t rust and can be painted to match gutters, fascia, or trim. Aluminum drip edges work well in most climates, including Missouri’s variable weather.
Galvanized Steel
Galvanized steel is coated with zinc for rust protection. It’s stronger than aluminum and holds up well in areas with high winds or heavy debris. For homes in exposed locations or with steep roof pitches, galvanized steel offers added durability.
Copper
Copper drip edges develop a protective patina over time and offer a distinctive look for higher-end homes. They’re highly durable and corrosion-resistant, making them a premium choice for homeowners who want both performance and aesthetics.
How to Install Drip Edges
Installing drip edges correctly is essential for them to work as intended. The best time to install a drip edge is during a roof replacement, but it can also be added to an existing roof if needed.
Tools you’ll need:
- Ladder
- Flat pry bar
- Hammer
- Galvanized roofing nails
- Tin snips
Installation steps:
- Start at the eaves. Install the drip edge along the eaves first, before the underlayment goes down. This ensures water flows into the gutters.
- Secure with nails. Place nails every 12 inches along the drip edge to hold it firmly in place.
- Overlap sections. Overlap each section by at least 2 inches to create a continuous water barrier.
- Install underlayment. After the eaves drip edge is in place, install the roof underlayment.
- Add rake drip edge. Install the drip edge along the rakes (the sloped edges of the roof) after the underlayment is in place.
- Check overhang. Make sure the drip edge extends past the fascia by 1/4 to 3/4 inch so water drips into the gutter, not behind it.
Signs Your Drip Edge Needs Replacement
Even well-installed drip edges can fail over time. Watch for these warning signs:
- Rotten or discolored fascia: Water running behind the gutters instead of into them.
- Rust or corrosion: Metal drip edges that are deteriorating won’t protect the roof effectively.
- Peeling paint on fascia or soffit: Moisture is getting where it shouldn’t.
- Visible gaps: Sections that have pulled away or shifted can let water and pests in.
- Water stains on interior ceilings: May indicate a leak starting at the roof edge.
If you notice any of these issues, it’s worth having a professional inspect your roof edge. Catching problems early can prevent more extensive damage to your fascia boards, soffit, and roof deck.
Benefits of Installing Drip Edges
- Prevents water damage: Directs water into gutters instead of behind them, protecting fascia, soffit, and siding.
- Extends roof life: Keeps water from seeping under shingles, reducing the risk of rot and mold.
- Blocks pests: Seals gaps where insects, birds, and small animals could enter the roof space.
- Meets building codes: Required by the IRC and most local building codes for new roofs and replacements.
- Protects against ice dams: Helps keep meltwater flowing off the roof during winter freeze-thaw cycles.
Common Installation Mistakes to Avoid
- Installing too close to the fascia: Water can run back onto the fascia instead of dripping into the gutter.
- Inadequate overlap: Sections must overlap by at least 2 inches to maintain a continuous barrier.
- Wrong nail spacing: Nails should be 8-12 inches apart. Too few nails, and the drip edge can shift or pull away.
- Shingles extending too far or not far enough: Shingles should overhang the drip edge by 3/8 to 1/2 inch for proper water shedding.
- Using the wrong type for the climate: In rainy areas like Missouri, T-style drip edges often perform better than narrow L-style profiles.
Frequently Asked Questions
Are drip edges required by building code?
Yes. The International Residential Code (IRC) requires drip edges on roof eaves and rakes for most new construction and roof replacements. Many local building departments in Missouri enforce this requirement.
Can I add a drip edge to an existing roof?
Yes, but it’s more involved than installing during a replacement. The old drip edge (if present) needs to be removed, and the shingles along the edge may need to be carefully lifted to install the new flashing. It’s often best to have a roofing professional handle this work.
Which drip edge type is best for Missouri homes?
Type D (T-style) is often the best choice for Missouri because it directs water further from the fascia and handles wind-driven rain well. However, the right choice depends on your specific roof design, gutter setup, and local climate conditions.
How long do drip edges last?
Drip edges typically last 20-30 years, depending on the material and exposure. Galvanized steel and copper last longer than aluminum, but all three materials can provide decades of protection when properly installed.
What happens if I don’t have a drip edge?
Without a drip edge, water can run down the fascia, seep under shingles, and pool behind gutters. Over time, this leads to wood rot, mold growth, pest infestations, and potentially costly repairs to the fascia, soffit, and roof deck.
Should shingles overhang the drip edge?
Yes. Shingles should extend 3/8 to 1/2 inch over the drip edge. This allows water to shed cleanly into the gutter without wicking back under the shingles.
When to Call a Professional
If you’re comfortable working on a ladder and have basic roofing tools, installing drip edges can be a DIY project. But for most homeowners, it makes sense to have a professional handle the job—especially during a roof replacement or if you’re seeing signs of water damage.
A professional roofer can ensure the drip edge is installed correctly, choose the right profile and material for your home, and identify any underlying damage that needs attention.
