How to Frame a Window in an Existing Wall: A Step-by-Step Guide for Columbia, Missouri Homeowners

Adding a new window to an existing wall is one of the most impactful remodeling projects a homeowner can tackle. It brings natural light into dark rooms, improves ventilation, and can transform how a space feels. But cutting into a load-bearing wall is not a weekend project you want to wing. The framing has to be done correctly, or you risk structural problems that are expensive to fix.

This guide walks through the entire process of framing a window opening in an existing wall, with specific considerations for homes in Columbia, Jefferson City, and the surrounding Mid-Missouri area. If you are considering adding windows to your home, CoMo Premium Exteriors can handle the project from planning through final trim.

Before You Start: What Columbia-Area Homeowners Need to Know

Building Permits Are Required

Cutting a new opening in an exterior wall is a structural modification that requires a building permit in Columbia, Jefferson City, and most Boone and Cole County jurisdictions. According to the City of Columbia Community Development department, permits for structural alterations typically cost $150 to $400. The inspection process ensures your framing meets the International Residential Code (IRC) requirements for header sizing, support, and weatherproofing.

Do not skip the permit. Unpermitted structural work can create serious problems when you sell the home, and your homeowner’s insurance may not cover damage from unpermitted modifications.

Load-Bearing vs. Non-Load-Bearing Walls

This is the single most important determination you will make. Load-bearing walls carry the weight of the roof and upper floors down to the foundation. Cutting into a load-bearing wall without proper temporary support and a correctly sized header can cause the ceiling or roof above to sag or, in extreme cases, collapse.

Signs a wall may be load-bearing:

• It runs perpendicular to the floor joists above
• It sits directly above a beam, wall, or column in the basement or crawl space
• It is an exterior wall (almost always load-bearing)
• It sits at the center of the home running the length of the house

When in doubt, have a structural assessment done before cutting anything. Many older homes in Columbia’s established neighborhoods (Benton-Stephens, East Campus, Grasslands) have framing configurations that are not immediately obvious.

Energy Code Requirements

Mid-Missouri falls in Climate Zone 4A per the Department of Energy’s climate zone map. This means new windows must meet minimum U-factor and Solar Heat Gain Coefficient (SHGC) requirements. For Zone 4A, the current code requires a maximum U-factor of 0.30 and a maximum SHGC of 0.40 for new window installations. Your window choice needs to meet these requirements to pass inspection.

Tools and Materials You Will Need

Gather everything before you start. Once you begin demolition, you want to close up the opening as quickly as possible, especially in Mid-Missouri where weather can change rapidly.

Tools

• Stud finder (electronic, not magnetic)
• Reciprocating saw with demolition and metal-cutting blades
• Circular saw
• Hammer and pry bar
• Level (4-foot minimum)
• Tape measure and carpenter’s square
• Drill/driver with bit set
• Safety glasses, hearing protection, dust mask (N95 minimum)
• Temporary support jacks or posts (for load-bearing walls)

Materials

• Header beam (sized for the span — see header sizing section below)
• Jack studs (trimmer studs)
• King studs
• Cripple studs (above header and below sill)
• Window sill plate
• Shims (cedar or composite)
• Construction adhesive and 16d nails or 3-inch structural screws
• Flashing tape and housewrap
• Insulation (spray foam for gaps, batt for cavities)
• Interior and exterior trim materials

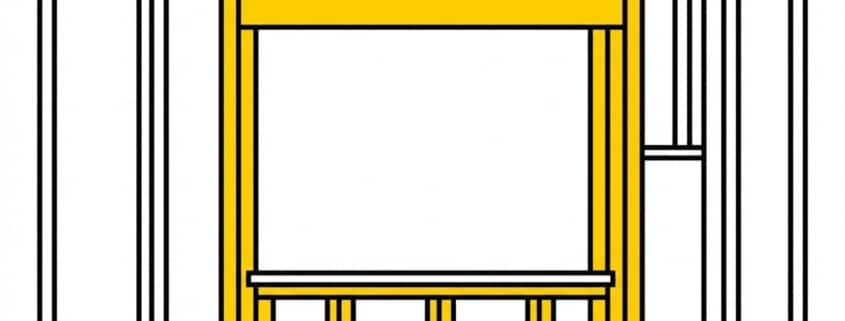

Step 1: Determine Header Size

The header is the horizontal beam that spans the top of the window opening and transfers the weight from above to the jack studs on each side. Header sizing depends on the span (width of the opening) and the load above.

For standard residential construction in a single-story home or the top floor of a multi-story home:

Opening Width	Minimum Header Size (load-bearing wall)
Up to 3 feet	Double 2×6
3 to 5 feet	Double 2×8
5 to 7 feet	Double 2×10
7 to 8 feet	Double 2×12

For non-load-bearing walls, a flat 2×4 header is typically sufficient for openings up to 8 feet. However, verify with your local building inspector, as requirements can vary.

For homes with second floors or heavy roof loads (tile roofing, for example), engineered lumber (LVL) headers may be required. A structural engineer can specify the correct size based on your specific load conditions.

Step 2: Locate Utilities in the Wall

Before cutting, identify what is inside the wall:

• Electrical wiring: Use a stud finder with AC wire detection. Wires often run horizontally through stud bores at 12 to 16 inches above the floor.
• Plumbing: Listen for water flow when fixtures are running. Pipes are most common in kitchen and bathroom walls.
• HVAC ducts: Check both sides of the wall for register locations that indicate ductwork inside.
• Gas lines: If you suspect gas lines, call a plumber before proceeding. Hitting a gas line is a serious safety hazard.

Any utilities in the path of the new opening must be rerouted by a licensed professional before framing begins. In Columbia, electrical and plumbing permits are separate from the structural permit.

Step 3: Set Up Temporary Support

For load-bearing walls, you must install temporary support before removing any studs. This support carries the load while you install the new header.

1. Build a temporary support wall 2 to 3 feet away from the working wall, running parallel to it
2. Use a top plate and sole plate with vertical studs spaced every 16 inches
3. Shim the temporary wall tight against the ceiling joists so it carries the load
4. The temporary wall must extend at least 2 feet beyond each side of the planned opening

Do not remove the temporary support until the new header, jack studs, and king studs are fully installed and fastened.

Step 4: Remove Interior Wall Covering

1. Mark the rough opening on the interior wall. The rough opening should be 1/2 inch wider and 1/2 inch taller than the window unit on each side.
2. Score the drywall along your lines with a utility knife to prevent tearing beyond the opening
3. Remove drywall within the marked area using a reciprocating saw (set blade depth to avoid cutting wiring)
4. Remove any existing studs within the opening using a reciprocating saw — cut them at the top and bottom and pry them out
5. Clean up insulation and debris from the cavity

Step 5: Install the Header

1. Install king studs on each side of the opening. These run full height from sole plate to top plate and carry the header load down to the floor framing.
2. Cut jack studs (trimmers) to the height of the rough opening. These sit against the inside face of the king studs and directly support the header.
3. Build the header by sandwiching 1/2-inch plywood between two pieces of dimensional lumber (or use a single piece of engineered lumber). The header depth should match the wall stud depth (3.5 inches for 2×4 walls, 5.5 inches for 2×6 walls).
4. Lift the header into position on top of the jack studs. Nail through the king studs into the header ends with 16d nails (minimum 4 nails per connection).
5. Install cripple studs above the header, running from the header to the top plate, at 16-inch centers to match the existing stud layout.

Step 6: Install the Sill Plate and Lower Framing

1. Measure down from the header to the desired sill height (typically 36 to 42 inches from the finished floor for standard windows, 18 to 24 inches for egress-compliant bedroom windows)
2. Cut and install the sill plate (rough sill) level between the jack studs
3. Install cripple studs below the sill plate, running from the sill down to the sole plate at 16-inch centers
4. Verify the rough opening dimensions match your window unit specifications

Step 7: Cut the Exterior Wall

This is the point of no return — once you cut the exterior, you need to work efficiently to keep weather out.

1. Drill through the exterior sheathing at each corner of the rough opening from inside
2. Move outside and snap chalk lines between the drill holes
3. Set your circular saw blade depth to match the sheathing and siding thickness
4. Cut along the chalk lines. For vinyl siding, remove courses above and below the opening first. For wood siding or fiber cement, cut in place.
5. Remove the exterior sheathing and siding within the opening

In Mid-Missouri, plan this step for a clear weather day. Check the forecast for at least 24 to 48 hours of dry weather so you have time to flash and seal the opening properly.

Step 8: Flash and Weatherproof the Opening

Proper flashing is critical in our climate. Mid-Missouri gets an average of 40 to 44 inches of rain per year, and water intrusion around windows is one of the most common sources of structural damage in area homes.

1. Apply a sill pan using self-adhesive flashing tape. Fold the tape up the sides at least 6 inches and down over the exterior sheathing.
2. Apply flashing tape up the side jambs, overlapping the sill pan tape.
3. Apply a head flashing strip that extends 4 to 6 inches beyond each side of the opening.
4. Integrate the flashing with the existing housewrap using a shingle-lap pattern (upper layers over lower layers).

Step 9: Install the Window

1. Apply a continuous bead of exterior-grade sealant around the exterior flange nailing area (do not caulk the bottom — it needs to drain)
2. Set the window into the opening from the exterior
3. Shim at the jambs and sill to ensure the window is plumb, level, and square. Check that the window operates smoothly before fastening.
4. Secure the window per the manufacturer’s specifications using the provided fasteners
5. Insulate the gap between the window frame and rough framing with low-expansion spray foam (do not use high-expansion foam, as it can bow the frame)
6. Apply exterior trim and caulk all joints

Step 10: Finish Interior and Exterior

1. Install interior drywall returns or jamb extensions to meet the window frame
2. Apply interior casing/trim
3. Install the window stool (interior sill) and apron
4. Caulk all interior trim joints and fill nail holes
5. Prime and paint all trim surfaces
6. On the exterior, install trim, J-channel (for vinyl siding), or casing and caulk all joints

Common Mistakes to Avoid

• Undersized header: This is the most serious framing error. An undersized header will sag over time, cracking drywall, binding the window, and potentially compromising structural integrity.
• Skipping the temporary support wall: Even brief unsupported conditions in a load-bearing wall can cause permanent damage.
• Improper flashing: In Mid-Missouri’s climate, water will find any gap. Reverse-lapped flashing or missing sill pan flashing will lead to rot within a few years.
• Using high-expansion foam: Around window frames, this will bow the jambs and prevent the window from operating. Always use low-expansion window and door foam.
• Ignoring egress requirements: If the window is in a bedroom, the IRC code requires minimum egress dimensions (5.7 square feet of opening, minimum 20 inches wide, minimum 24 inches high, maximum 44-inch sill height).

When to Hire a Professional

While framing a window is within the skill range of an experienced DIYer, several situations call for professional help:

• The wall is load-bearing and you are not confident in header sizing and temporary support
• Utilities need to be rerouted (always hire licensed electricians and plumbers)
• The home is a multi-story and the opening is large (over 6 feet)
• You want the window installation covered by a manufacturer’s warranty (many require certified installers)
• You are adding multiple windows and want the project completed efficiently

At CoMo Premium Exteriors, our window replacement and installation services cover the entire project — framing, flashing, installation, insulation, and trim. We handle the permitting and inspections so you do not have to manage subcontractors or navigate the building department on your own.

Cost to Frame and Install a New Window in Columbia, MO

For a standard-sized window (3 to 4 feet wide) in a frame-construction home:

Component	DIY Cost	Professional Cost
Framing materials (header, studs, hardware)	$75 – $150	Included
Window unit (vinyl, double-hung, ENERGY STAR)	$250 – $600	$250 – $600
Flashing and weatherproofing	$30 – $60	Included
Insulation and sealant	$20 – $40	Included
Interior and exterior trim	$50 – $150	Included
Labor	$0	$500 – $1,200
Building permit	$150 – $400	$150 – $400
Total	$575 – $1,400	$1,200 – $2,850

These numbers reflect the Columbia and Mid-Missouri market. Costs increase for brick or stone exteriors, larger openings, second-story installations, or specialty window types.

Frequently Asked Questions

Do I need a permit to add a window in Columbia, Missouri?

Yes. Cutting a new opening in an exterior wall is a structural modification that requires a building permit from the City of Columbia Community Development department. The permit ensures your header sizing, framing, and flashing meet code requirements. Permit fees typically run $150 to $400.

How do I know if my wall is load-bearing?

Exterior walls are almost always load-bearing. Interior walls that run perpendicular to floor or ceiling joists, or that sit directly above a beam or support wall below, are typically load-bearing. If you are unsure, have a contractor or structural engineer evaluate the wall before cutting into it.

How long does it take to frame and install a new window?

For an experienced DIYer, expect 2 to 3 full days for a single window in a frame-construction wall. A professional crew typically completes the same project in 1 day. Brick or stone exteriors add significant time and complexity.

What size header do I need for a window opening?

For load-bearing walls in standard residential construction, use double 2×6 for openings up to 3 feet, double 2×8 for 3 to 5 feet, double 2×10 for 5 to 7 feet, and double 2×12 for 7 to 8 feet. Non-load-bearing walls typically need only a flat 2×4 header. Always verify with your local building inspector.

Can I add a window to a brick wall?

Yes, but it is significantly more complex than frame construction. Brick walls require cutting through masonry with a diamond blade, installing a steel lintel above the opening, and properly waterproofing the masonry-to-window transition. This is a job for an experienced professional, not a DIY project.

What type of window is best for energy efficiency in Mid-Missouri?

For our Climate Zone 4A, look for windows with a U-factor of 0.30 or lower and an SHGC of 0.40 or lower. Double-pane low-E glass with argon fill is the standard. ENERGY STAR certified windows meet these requirements. The National Fenestration Rating Council (NFRC) label on each window shows its exact ratings.

Will adding a window increase my home’s value?

Generally yes, especially in rooms that lack natural light. A well-installed window that improves functionality and aesthetics typically recoups 60 to 70 percent of its cost at resale. In Columbia’s housing market, dark or poorly lit rooms are a common buyer objection that new windows directly address.
